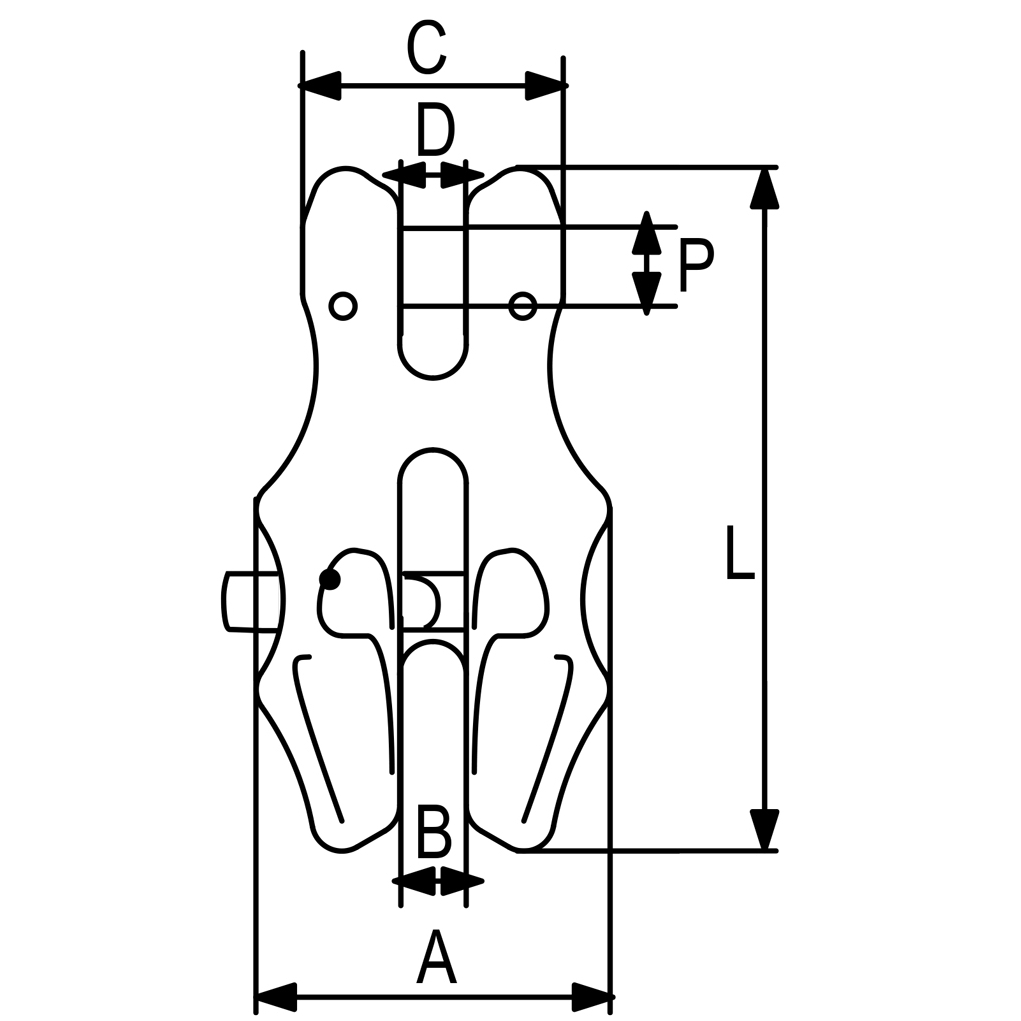

| Chain diameter (mm) | Capacity (t) | Min. breaking force (t) | A (mm) | B (mm) | c (mm) | D (mm) | p (mm) | L (mm) | Weight (kg/piece) | Add to Enquiry |
| 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 7/8-8 | 2 | 8 | 50 | 9.5 | 33 | 9.5 | 9.2 | 92 | 0.41 | Add + |
| 10-8 | 3.15 | 12.6 | 60 | 12.5 | 43 | 12.5 | 13.3 | 115 | 0.75 | Add + |
| 13-8 | 5.3 | 21.2 | 79 | 15 | 55 | 15 | 16.3 | 149 | 1.67 | Add + |

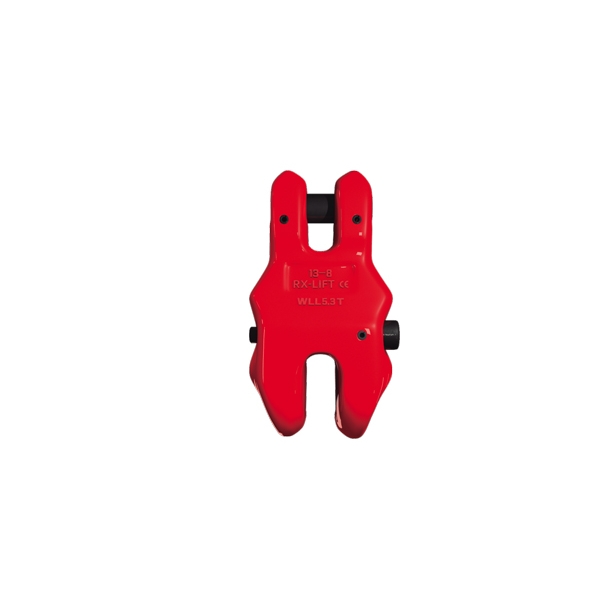

Clevis shortening clutch with safety pin G80
• EN 1677-1
• EN 1677-1
